Radar detection
Detect people moving inside the protected corridor.
HIGH-SECURITY PERIMETER SENSING
Perimeter security radar
Keep personnel position and movement continuously visible
Detect and track people along a protected corridor, then provide coordinates, speed and trajectories to the security platform for alarm rules and camera-assisted verification.
Illustrative security-system workflowUp to 200 mPersonnel detection range
Continuous tracksPersistent target trajectories
Target coordinatesPosition, speed and direction
EthernetData connection to the host system
SOLUTION ROLE
Radar detects and tracks.
The platform applies the rules.
Perimeter protection needs more than a binary motion signal. It needs to know where a person is, which way the target is moving and whether the track enters a defined area. Radar supplies continuous target data to the existing security platform for map display, zone logic, alarm management and visual verification.
For prison perimeters, critical facilities, industrial sites and other secured areas requiring long-range personnel awareness.
SYSTEM WORKFLOW
From target appearance to operator verification
Alarm zones and response rules are configured in the security platform according to the site and operating procedure.
Continuous tracking
Maintain target ID, coordinates, speed and movement trajectory.
Platform rules
Evaluate approach, entry, crossing or exit against configured zones.
Alarm and video
Notify the operator and coordinate a compatible camera for visual confirmation.

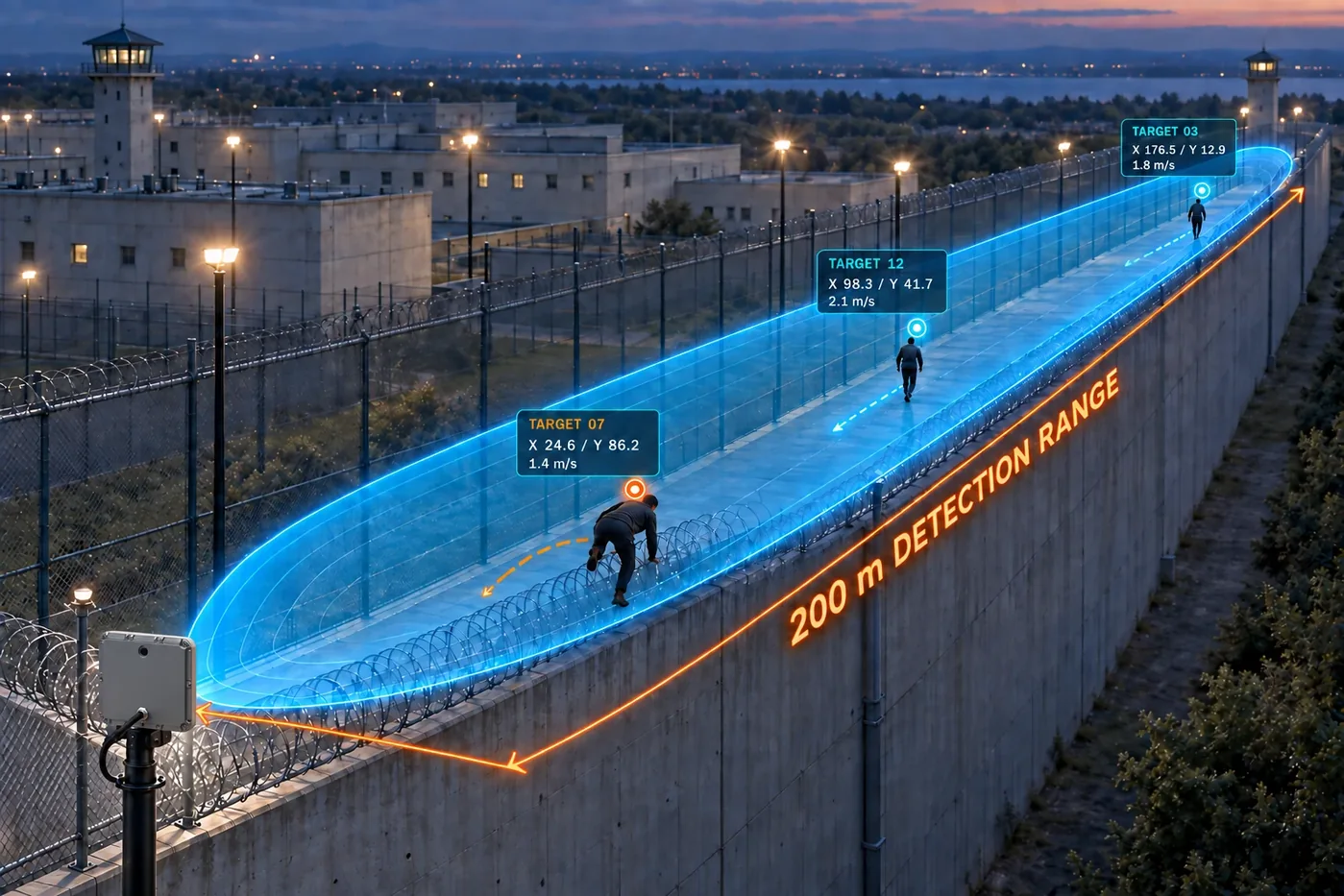

200 m personnel-detection corridorLONG-RANGE CORRIDOR
Build continuous awareness along the perimeter
MSR-S200 is installed at one end of the corridor with its antenna face pointing into the protected direction. Once a person enters the detection area, the system receives continuing position and motion updates for zone and crossing analysis.
- Personnel detection up to 200 m
- Tracking for up to 32 targets
- Coordinates, speed and trajectories
- Final coverage validated against site geometry
TARGET DATA
Give the existing security system a moving target
The radar supplies front-end data. The host platform handles zones, alarms, recording and operator procedures.
Where the target is
Target ID and X/Y coordinates locate each person in the monitored corridor.
How the target moves
Speed, direction and trajectory describe movement over time.
What the movement means
The platform compares tracks with zones and virtual boundaries.
What the operator sees
Target position can support camera steering and visual confirmation.
APPLICATIONS
For perimeters that need continuous personnel awareness
Each project should account for walls, fences, corridor width, obstructions and available mounting positions.
Walls and isolation corridors
Track people approaching, entering or crossing protected areas and send trajectories to the platform.
High-security boundaries
Supply personnel target data around compounds, energy sites and restricted facilities.
Long fences and site edges
Add continuous sensing along perimeter corridors to support existing video and alarm systems.
Front · antenna radome
Rear · mounting and connectionRECOMMENDED SECURITY RADAR
MSR-S200
200 m perimeter security radar
MSR-S200 is designed for personnel detection around prisons and other high-security perimeters, supplying target coordinates, speed and trajectories over Ethernet.
View MSR-S200 →BEFORE DEPLOYMENT
Understand the perimeter before positioning the radar
Site geometry and system interfaces determine the coverage design and integration method.
Walls, fences and corridors
Provide the perimeter length, corridor width, turns, access points and priority areas.
Mounting, direction and obstruction
Confirm the radar position, antenna direction and obstruction from vegetation or structures.
Network, platform and cameras
Define the network, host interface, available cameras and alarm-response workflow.
Contact us for detailed communication protocols and integration documentation.
COMMON QUESTIONS
Evaluating a perimeter radar project
Does the radar directly output a wall-crossing alarm?
The radar continuously outputs target coordinates and trajectories. The integrated security platform normally applies the virtual boundaries, zones and alarm rules required by the project.
Can the radar detect people at night?
Radar sensing does not depend on ambient light. Final performance should still be checked against obstructions and installation conditions.
Can the system work with cameras?
Target position and motion data can be supplied to the security platform, which can coordinate compatible cameras for visual verification.
How can we obtain the communication protocol?
Contact us with the host interface and project workflow to request the detailed protocol and integration documentation.
PROJECT ENQUIRY
Share the perimeter layout and host-system requirements
Provide the wall or fence layout, corridor width, detection distance, mounting position, cameras, network and alarm workflow.
