Radar Flow Meter: Advanced Hydrological and Hydraulic Radar Measurement Solutions

Introduction

In the realm of hydrology and hydraulic engineering, accurate water flow measurement is essential for effective water resource management, flood control, irrigation, and environmental monitoring. Among the cutting-edge instruments available today, radar flow meters have become increasingly popular due to their non-contact measurement capability, robustness, and precision.

This comprehensive guide explores everything you need to know about radar flow meters — from fundamental principles and technology types to applications, benefits, installation tips, and maintenance. Whether you are a water management professional, engineer, or procurement specialist, this article will help you understand why radar flow meters are a smart investment for your hydrological and hydraulic projects.

1. What is a Radar Flow Meter?

A radar flow meter is a device that uses radar technology to measure the velocity of flowing liquids or gases remotely and non-invasively. Unlike traditional flow meters that require direct contact with the fluid, radar flow meters utilize electromagnetic waves to detect flow velocity, allowing measurement without physical intrusion into the flow stream.

Radar flow meters are especially useful in open channel flow applications such as rivers, canals, and irrigation channels, as well as in closed pipes where non-contact methods are preferred for safety or contamination reasons.

2. How Does a Radar Flow Meter Work?

Radar flow meters operate on the principle of the Doppler effect or frequency shift of radar waves reflected by moving fluid particles or surface waves.

Principle of Operation

The radar unit emits a radio frequency signal toward the flowing fluid.
The signal reflects off particles or the fluid surface.
If the fluid is moving, the frequency of the reflected radar wave shifts proportionally to the velocity of the flow (Doppler shift).
The flow meter processes this frequency shift to calculate the velocity of the fluid.
By combining velocity data with cross-sectional area measurements, the flow rate can be accurately determined.

Types of Radar Signals Used

Continuous Wave (CW) Radar
Pulsed Radar

Each type has its own advantages depending on the application.

3. Types of Radar Flow Meters

Radar flow meters come in various designs tailored for different applications and conditions:

3.1 Doppler Radar Flow Meters

Use the Doppler frequency shift of radar waves.
Best suited for flows with suspended particles or bubbles.
Common in open channel and wastewater flow measurement.

3.2 Pulse Radar Flow Meters

Emit pulses and measure the time delay of the reflected signal.
Can measure flow velocity and distance (level).
Often combined with level sensors to calculate flow in open channels.

3.3 Frequency Modulated Continuous Wave (FMCW) Radar Flow Meters

Emit frequency-modulated continuous waves.
Measure velocity and level simultaneously.
Provide high accuracy and resolution.

3.4 Non-Contact Surface Velocity Radar Flow Meters

Measure surface velocity by detecting the speed of ripples or waves on the fluid surface.
Require correlation to average flow velocity using empirical formulas.

4. Key Features and Benefits of Radar Flow Meters

4.1 Non-Contact Measurement

No intrusion into the fluid stream.
Reduces risk of contamination, corrosion, and wear.

4.2 High Accuracy and Reliability

Precise velocity measurement even in harsh or turbulent environments.
Consistent performance in dirty, abrasive, or chemically aggressive fluids.

4.3 Easy Installation and Maintenance

Typically mounted above the flow channel.
Minimal moving parts reduce maintenance needs and downtime.

4.4 Versatility

Suitable for open channels, rivers, irrigation ditches, stormwater drains, and closed pipes.
Can measure both liquids and gases.

4.5 Real-Time Data and Remote Monitoring

Often equipped with digital output options including 4-20mA, Modbus, and wireless communication.
Enables integration with SCADA and IoT systems for remote monitoring.

5. Applications of Radar Flow Meters in Hydrology and Hydraulic Engineering

Radar flow meters serve diverse roles in water resource and hydraulic engineering:

5.1 River and Stream Flow Monitoring

Measure surface velocity to estimate river discharge.
Monitor flood events and water level changes.

5.2 Irrigation and Agricultural Water Management

Control water distribution in canals and ditches.
Optimize irrigation efficiency and conserve water.

5.3 Wastewater and Stormwater Management

Measure flow in open channels and sewers.
Detect overflow and pollution events.

5.4 Hydropower Plants

Monitor flow rates to optimize turbine performance.
Ensure safety and regulatory compliance.

5.5 Environmental and Ecological Studies

Track flow changes affecting aquatic habitats.
Support research on sediment transport and erosion.

6. Choosing the Right Radar Flow Meter

Selecting the best radar flow meter depends on several factors:

6.1 Flow Characteristics

Open channel vs. closed pipe
Presence of suspended solids or bubbles
Flow velocity range and turbulence level

6.2 Environmental Conditions

Exposure to weather, temperature extremes, and debris
Risk of vandalism or physical damage

6.3 Accuracy and Measurement Range

Required precision for your project
Minimum and maximum flow rates expected

6.4 Installation Constraints

Available mounting locations
Accessibility for maintenance

6.5 Budget and Lifecycle Cost

Initial purchase price
Installation, calibration, and maintenance costs

7. Installation and Maintenance Tips for Radar Flow Meters

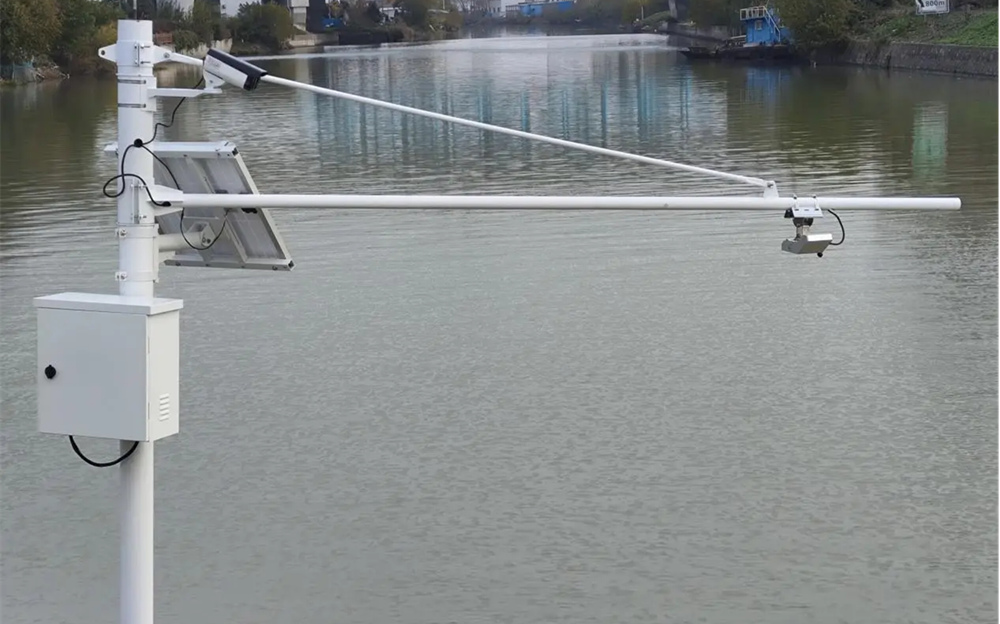

7.1 Proper Mounting Location

Position the radar sensor above the flow path with a clear, unobstructed view.
Avoid areas with heavy turbulence or excessive surface foam.

7.2 Calibration and Verification

Calibrate the meter according to manufacturer instructions.
Periodically verify readings against manual flow measurements.

7.3 Routine Maintenance

Clean sensor lens to prevent dirt buildup.
Inspect mounting hardware and cabling.

7.4 Data Integration

Connect to data loggers or control systems.
Implement alarms for flow abnormalities.

8. Challenges and Solutions in Radar Flow Meter Usage

8.1 Surface Conditions Affecting Accuracy

Foam, debris, or ice can distort radar signals.
Solution: Use signal processing filters or alternative measurement positions.

8.2 Environmental Interference

Rain, snow, or fog may impact radar performance.
Solution: Choose radar frequencies optimized for environmental resistance.

8.3 Complex Flow Profiles

Irregular channel shapes can complicate flow calculation.
Solution: Use advanced hydraulic modeling software to complement radar data.

9. Future Trends in Radar Flow Meter Technology

9.1 Integration with IoT and Smart Water Networks

Enhanced remote control and predictive maintenance.
Real-time analytics for water management.

9.2 Miniaturization and Cost Reduction

More affordable, compact units for widespread deployment.

9.3 Improved Signal Processing Algorithms

Better accuracy in challenging conditions.
Automated self-calibration and diagnostics.

10. Conclusion

Radar flow meters represent a significant advancement in hydrological and hydraulic measurement technology. Their non-contact, accurate, and low-maintenance design makes them ideal for a wide range of water flow applications — from river monitoring to wastewater treatment.

By understanding the types, working principles, and best practices for selection and installation, professionals can leverage radar flow meters to enhance water management projects, improve operational efficiency, and contribute to sustainable resource use.

As water challenges grow globally, investing in reliable radar flow meters will ensure better data, smarter decisions, and more resilient water infrastructure.
