A microwave radar sensor transmits radio-frequency energy and processes signals reflected by people, vehicles or other objects. Depending on its waveform and antenna design, it may detect motion, measure radial speed, determine target range or estimate direction and position.
Microwave radar sensors range from simple motion detectors to multi-target traffic and security radars. These products are not interchangeable. A low-cost Doppler module may report only movement, while an FMCW tracking radar may provide distance, speed, coordinates, target IDs and trajectories.
Selecting the correct sensor therefore starts with the required output—not with frequency or maximum advertised range.
What Is a Microwave Radar Sensor?
Microwave radar is an active sensing technology. The sensor generates radio waves, directs them toward a monitored area and receives energy reflected by objects.
The returned signal contains information affected by target distance, motion, direction, material, size and orientation. Signal processing converts these reflections into usable measurements or events.
The microwave region is broader than the millimeter-wave region. Millimeter waves are generally defined as frequencies from approximately 30 GHz to 300 GHz. Therefore, an mmWave sensor is a type of microwave radar sensor, but not every microwave radar operates in the millimeter-wave band.
For a detailed explanation of higher-frequency sensing, see the mmWave sensor guide.
How Does Microwave Radar Work?
The basic operating process includes four stages:
- The transmitter generates a controlled radio waveform.
- The antenna radiates the signal into the monitored area.
- Objects reflect part of the signal toward the receiving antenna.
- The processor analyses frequency, phase, amplitude and timing information.
The measurements available depend on the transmitted waveform and receiver architecture.
Motion detection
A moving target changes the frequency of the reflected signal. This change is called Doppler shift. A basic Doppler sensor uses it to determine whether an object is moving and, in some designs, whether it is approaching or receding.
Speed measurement
The Doppler frequency is related to radial velocity—the part of target speed directed toward or away from the radar.
If a vehicle moves at an angle to the radar beam, measured radial speed may differ from actual road speed. Installation geometry and any angle compensation must therefore match the product design.
Range measurement
Range requires additional waveform information. Pulsed radar estimates distance from signal travel time. FMCW radar estimates range by comparing the transmitted frequency-changing chirp with the delayed reflected chirp.
Angle measurement

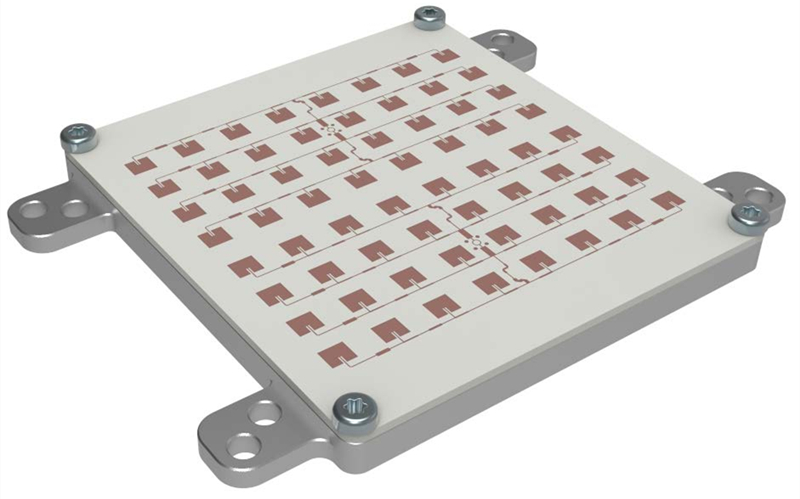

A radar with multiple antenna channels can compare phase or amplitude across the array to estimate the direction from which a reflection arrives.
A horizontal antenna aperture supports azimuth measurement. Elevation requires suitable antenna channels in the vertical dimension.
CW, FMCW and Pulsed Microwave Radar
| Radar type | Typical measurements | Important limitation |
|---|---|---|
| Continuous-wave Doppler radar | Motion, radial speed and direction | Does not directly measure target range |
| FMCW radar | Range, radial speed and, with suitable antennas, angle | Performance depends on waveform, antenna and processing configuration |
| Pulsed radar | Range from signal travel time; Doppler may also be available | Architecture and regulatory requirements vary considerably by application |
A simple automatic-door sensor and a multilane traffic radar may both be called microwave radar, even though their measurements and integration requirements are very different.
What Can a Microwave Radar Sensor Output?
Depending on the product, available outputs may include:
- Motion or presence state
- Approaching or receding direction
- Individual target speed
- Target range
- Azimuth and elevation
- X, Y or Z coordinates
- Target ID and trajectory
- Detection-zone events
- Vehicle count and lane statistics
- Queue, wrong-way or stopped-target events
A detector that outputs one zone state is not equivalent to a radar that provides individual vehicle tracks. Buyers should confirm whether the required information is measured by the sensor, calculated by its internal software or derived by an external controller.
Motion Detection vs Presence Detection
Motion and presence are not the same function.
A basic continuous-wave Doppler sensor responds to movement. If the target stops, its Doppler signal may disappear and the sensor may no longer report it.
An FMCW radar can determine that a reflecting object remains within a defined range zone. However, some processing chains intentionally remove stationary reflections to suppress walls, poles, road surfaces and other clutter.
For queue detection, stop-line presence or stationary-person monitoring, verify:
- Whether stationary targets are detected
- How long stopped tracks are maintained
- How background learning affects persistent objects
- How target creation and deletion are configured
Microwave Radar vs mmWave Radar
| Term | Meaning | Practical consideration |
|---|---|---|
| Microwave radar | Broad family of radar operating at microwave frequencies | Includes many different bands, waveforms and applications |
| mmWave radar | Radar operating in the millimeter-wave region | Shorter wavelength can support compact antennas and larger effective arrays |
| Microwave motion sensor | Often a simple Doppler module | May provide only movement or a switch output |
| Microwave tracking radar | Processed radar with target coordinates or trajectories | Requires range, angle and tracking capability |
Higher frequency does not automatically mean longer range, better accuracy or more reliable classification. Detection performance also depends on transmit power, antenna aperture, bandwidth, target reflection, receiver sensitivity, processing and regulatory limits.
Microwave Radar Applications in Traffic Systems
Vehicle speed measurement
Doppler radar can measure vehicle radial speed without physical contact. It is used in speed-feedback signs, temporary warning systems and other roadside applications.
For an example of a speed sensor intended for external system integration, see the HC-TR20 speed measurement radar.
Traffic-flow monitoring
A multi-target radar may provide vehicle speed, coordinates, lane assignment and trajectories. These records can be converted into vehicle count, average speed, occupancy and headway statistics.
See the traffic flow monitoring solution for a complete application overview.
Intersection detection
Range-capable radar can create approach, stop-line and departure zones. It may support signal actuation, queue monitoring or approach-speed measurement.
Speed enforcement integration
A radar can provide speed, position and trigger information to a camera controller. Reliable enforcement also requires target-to-image association, calibration, timing and compliance with local legal requirements.
See the speed enforcement integration solution.
Wrong-way and incident detection
Direction and trajectory data may support wrong-way alarms, stopped-vehicle events or abnormal-movement detection. Event rules must be validated using the actual road geometry and traffic conditions.
Microwave Radar in Security Systems
Perimeter intrusion detection
A tracking radar can detect people or vehicles entering defined zones and send coordinates or events to a security platform.
Radar-camera cueing
Radar coordinates can direct a pan-tilt-zoom camera toward a target. Accurate camera pointing requires spatial calibration, timing and a compatible coordinate system.
Access and barrier control
Short-range radar can trigger doors, gates or barriers. The system should distinguish the intended approach direction and prevent unwanted activation from adjacent movement.
Privacy-sensitive sensing
Radar does not create conventional photographic images, but it can still collect occupancy and movement data. Privacy, retention and access-control policies may therefore remain relevant.
For wide-area ground monitoring, see the perimeter security radar solution.
Microwave Radar vs PIR Motion Sensors
A passive infrared sensor detects changes in infrared radiation. It does not transmit a sensing signal.
A microwave radar sensor actively transmits radio waves and detects changes in reflected signals.
| Characteristic | Microwave radar | PIR sensor |
|---|---|---|
| Operating principle | Active radio-frequency sensing | Passive infrared sensing |
| Speed measurement | Possible using Doppler | Not directly |
| Range measurement | Possible with FMCW or pulsed radar | Not directly |
| Temperature contrast | Not required for radio reflection | Detection depends on infrared contrast and movement |
| Detection through materials | Possible through some non-metallic materials, depending on design | Normally blocked by solid barriers |
| False-trigger risks | Movement outside the intended area, multipath or vibration | Thermal changes, sunlight or moving warm objects |
Neither technology is universally better. The correct choice depends on required distance, target information, environment, privacy and cost.
Microwave Radar vs Camera and Lidar
Camera
A camera provides detailed visual information, including colour, appearance and licence plates. Radar provides direct speed and range information and does not require visible illumination.
Radar and cameras are often complementary rather than interchangeable.
Lidar
Lidar can produce dense and detailed spatial measurements. Radar generally provides strong direct Doppler-velocity measurement and operates without visible light.
Lidar may be more sensitive to some visibility conditions and optical-window contamination. Radar can be affected by multipath, clutter, antenna resolution and radome condition.
Ultrasonic sensor
Ultrasonic sensing is suitable for short-range distance or presence detection. Its useful range and coverage are usually much smaller than those of traffic or perimeter radar.
Is Microwave Radar Unaffected by Weather?
No sensor is completely unaffected by its environment.
Microwave radar does not depend on visible illumination and often maintains useful operation in darkness, glare and ordinary roadside weather. However, heavy precipitation, water or ice on the radome, atmospheric effects at some frequencies and unsuitable installation conditions can affect performance.
Weather capability should be supported by documented specifications and field testing rather than an unrestricted “all-weather” statement.
Can Microwave Radar See Through Walls?
Radio waves can pass through some non-metallic materials, but attenuation depends on frequency, material, thickness, moisture and antenna design.
Metal, reinforced concrete and coated materials can block or strongly reflect radar signals. A roadside or security radar should not be assumed to provide reliable through-wall detection unless it was specifically designed and tested for that purpose.
What Affects Detection Range?
Maximum detection range is affected by:
- Transmit power and antenna gain
- Receiver sensitivity
- Target size, material and orientation
- Radar cross-section
- Waveform and processing gain
- Required detection probability
- Allowed false-alarm rate
- Field of view
- Installation geometry
- Clutter, occlusion and environmental conditions
A sensor may detect a target before it can measure, classify or track it reliably. Compare products using the same target definition and acceptance criteria.
Common Installation Problems
Incorrect alignment
Aiming errors can change coverage, lane assignment and measured radial speed.
Occlusion
Trucks, walls, vegetation and other objects can block smaller targets.
Multipath reflections
Guardrails, metal structures, building surfaces and floors can create indirect reflection paths.
Movement outside the required zone
Radar may detect targets beyond a wall, fence, doorway or adjacent road if its field of view is not controlled.
Pole and mounting vibration
Movement of the radar itself can create unwanted Doppler components or unstable coordinates.
Incorrect background configuration
Clutter filters and exclusion zones may suppress required targets or retain unwanted reflections if configured incorrectly.
How to Select a Microwave Radar Sensor
- Define the required output: motion, presence, speed, distance, angle, coordinates, tracks or events.
- Define target types: cars, trucks, motorcycles, pedestrians or other objects.
- Specify moving and stationary behaviour: determine whether stopped targets must remain present.
- Define coverage: minimum and maximum range plus horizontal and vertical field of view.
- Separate accuracy from resolution: specify both where target separation matters.
- Define target capacity: use expected peak density.
- Check installation geometry: mounting height, offset, angle and occlusion.
- Confirm interfaces: electrical connection, message format, timing and status output.
- Confirm radio compliance: permitted frequency and certification vary by region.
- Plan field acceptance: agree on measurable tests before installation.
Integration Checklist
System integrators should confirm:
- Coordinate origin and axis direction
- Speed and distance units
- Lane or zone numbering
- Target-ID lifecycle
- Timestamp format and clock synchronisation
- Update rate and latency
- Serial, network or controller interface
- Status, alarm and heartbeat messages
- Configuration backup
- Power and communication recovery
A sensor may detect targets accurately while still producing incorrect system behaviour if the controller interprets its coordinates, timestamps or target IDs incorrectly.
How to Validate an Installation
A practical field test should include:
- Representative target types
- Approaching and departing directions
- Required minimum and maximum distances
- Speed comparison against a suitable reference
- Lane or zone assignment
- Slow and stationary targets when required
- Dense scenes and partial occlusion
- Event and trigger-location repeatability
- Communication interruption and recovery
- Camera or controller association
Evaluate each required output separately. Avoid replacing detection probability, position accuracy, speed accuracy and tracking continuity with one unsupported “accuracy” figure.
Frequently Asked Questions
What does a microwave radar sensor detect?
Depending on its design, it may detect motion, radial speed, range, angle, position or multiple target tracks.
Is a microwave sensor the same as a motion sensor?
Some microwave sensors provide only motion detection, but more advanced radar can also measure range, speed and angle.
Can microwave radar detect stationary vehicles?
An FMCW radar can measure stationary-object range, but its processing may suppress static reflections. Stationary-target behaviour must be confirmed for the specific product.
Does microwave radar require a camera?
No. Radar can detect and measure targets independently. A camera is required when the application needs visual evidence, plate recognition or detailed appearance information.
Is microwave radar safe?
Commercial radar equipment must comply with applicable radio-frequency exposure, emission and product-certification requirements. Use equipment only within its approved installation and operating conditions.
Which frequency is best?
There is no universally best frequency. The correct choice depends on permitted regional spectrum, target type, range, antenna size, bandwidth, resolution and application requirements.
Summary
A microwave radar sensor actively transmits radio waves and processes reflections to detect motion, measure speed, determine range or estimate target position.
Simple CW sensors, FMCW presence detectors and multi-target tracking radars serve different purposes even though all may be described as microwave radar.
Successful selection requires clearly defined outputs, representative target specifications, correct installation geometry, compatible interfaces and field validation under realistic conditions.
